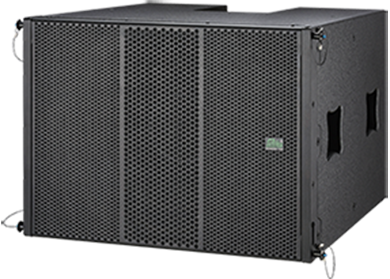

LIV-18P

Active Speaker

LIV-18P
  • LIV-18P
产品大图

产品介绍




型号:LIV‑18P
LIV-18P 单18寸有源次低线阵列音箱是专为补充低频、提升扩声质感设计的有源线阵列次低音箱,核心作用是与 LIV-210P 形成高低频协同联动,完美解决 LIV-210P 低频下潜不足的问题。其强劲的低频输出的能力,能与 LIV-210P 的高频、中频形成互补,让整体音质更饱满、层次感更丰富;同时采用与 LIV-210P 同源的快装设计,吊装、连接方式完全匹配,可直接与 LIV-210P 同步搭建、协同工作,无需额外适配调试。
搭配使用时,LIV-210P 负责清晰传递人声、呈现细腻高频,LIV-18P 负责强化低频厚度与穿透力,二者协同发力,既能保证清晰的人声与高频细节,又能拥有强劲的低频支撑,适配各类中小型演出、宴会、商业活动等场景,大幅提升扩声质感,无需额外增加复杂操作,实现 “1+1>2” 的扩声效果,兼顾实用性与专业性。适配中小型室内外各类演出、宴会、商业活动等场景,为现场音质注入强劲低频动力。
The LIV-18P is an active line array subwoofer specifically designed to enhance low-frequency response and elevate overall sound reinforcement quality. Its core function is to work in tandem with the LIV-210P, creating a harmonious high-low frequency synergy that perfectly complements the LIV-210P's potential lack of deep bass extension.

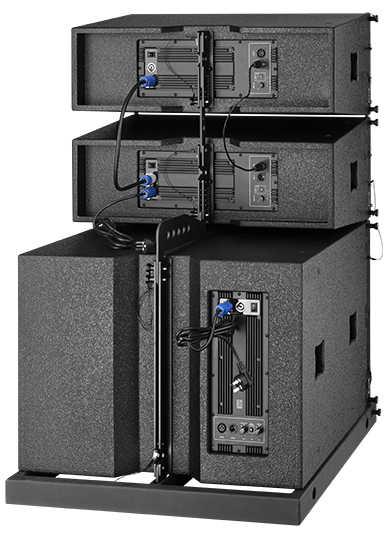

Boasting powerful low-frequency output capabilities, the LIV-18P effectively complements the LIV-210P's high and mid-range frequencies, delivering a rich, full-bodied sound with enhanced layering. It features a quick-install design fully compatible with the LIV-210P—ensuring  (hoisting/installation) and connection methods are a direct match. This allows for simultaneous setup and collaborative operation with the LIV-210P, eliminating the need for additional adaptation or debugging.
When used together, the LIV-210P handles clear vocal delivery and delicate high-frequency details, while the LIV-18P reinforces low-frequency thickness and penetrative power. This collaborative effort ensures both crystal-clear vocals and high-frequency details, alongside robust low-frequency support. Ideal for a wide range of small to medium-sized events, including performances, banquets, and commercial activities, the combination significantly elevates sound reinforcement quality without requiring complex additional setup. Experience the remarkable "1+1>2" sound reinforcement effect, balancing both practicality and professionalism seamlessly.

产品参数

Model:LIV-18P
Type :18-inch active  linear array subwoofer
Frequency Response(-6dB anechoic chamber) :30Hz-180Hz
Maximum Calculated SPL/1M(Continuous): 126dB
LF Driver: 1X 18” driver,
Rigging:Quick rigging with 3 pcs  Aluminum hanging ,Secured with Ø8mm quick-release lock pins.
Amplifier Circuitry: Class D
Power(RMS): 1000W
Frequency Response(1W 8Ω) :20Hz-20kHz(±0.2dB)
Signal Input/Output : 2× XLR
Power Input/Output:Power connector
AC Power Operating Range:100V~130V or 190V~250V (±10%,50/60Hz)
Cabinet Material:18mm plywood CNC made
Cabinet Color Black is standard and default color. Consult with sales team for other customized colors
Dimension(W×H×D):710X500X640mm
N.W: 51.3Kg
